Product information and data sheets

The flexible silicone for special requirements

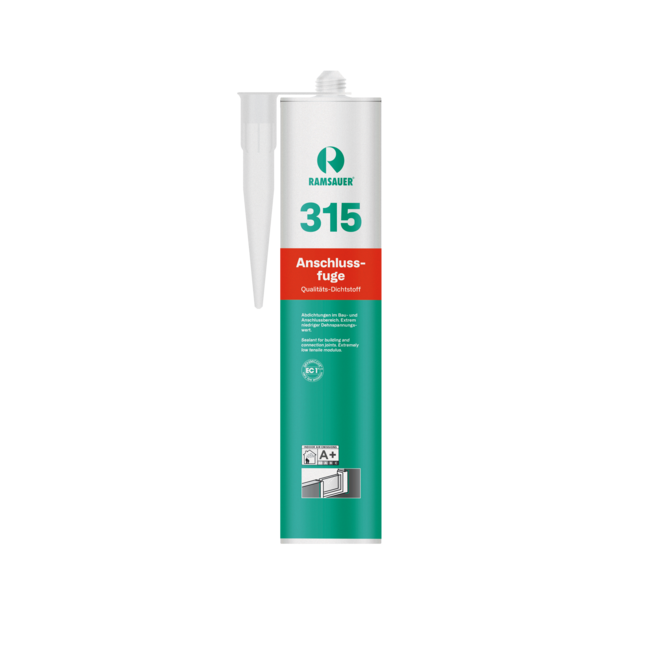

Thanks to 315 Anschlussfuge, gaps in door or window elements’ perimeter joints are nothing to be afraid of. On account of its flexible properties and high elongation at break (250%), the silicone system is perfect for sealing windows and doors outdoors. Even wind and weather cannot throw the material out of joint. Due to its very low yield stress, 315 Anschlussfuge is the ideal choice for sealing perimeter joints on metal window sills. In addition, the material can also withstand heavy stress and strain, meaning it can also be used for expansion and butt joints in pre-fabricated concrete structures.

elastic
vapour permeable
strongly UV and weather resistant
no metal corrosion

Properties

  • elastic
  • Vapour-permeable
  • UV-resistant
  • non-corrosive
  • Odourless
  • Low-emitting
  • Resistant to ageing
  • Maximum movement accommodation: 25%

Standards

  • EMICODE® EC 1PLUS "very low emission"
  • DIN EN ISO 12572
  • DIN EN ISO 15651-1 F25LM EXT-INT
  • DIN EN ISO 11600 F25LM
  • DIN 18540
  • ÖNORM B 5320

Technical data

Colours
white, grey, transparent
Storage life
9 months in a cool and dry place
Shore hardness
~ 12 (EN ISO 868)
Tensile modulus at 100%
0,10 N/mm² (EN ISO 8339)
Skin over time
~ 35 min. (23°C/50 % relative humidity)
Curing time
~2 mm/24 hours (at +23°C / 50 % relative humidity)
Temperature resistance
- 40°C bis + 150°C
Movement capability
25%
Elongation at break
~ 250% (EN ISO 8339)
Packaging
310 ml cartridges, 400 ml foil bags
Processing temperature (substrate, environment)
+5°C to + 35°C
Shrinkage
~ 4.7% (EN ISO 10563)
Density
~ 1.01 (EN ISO 1183-1)
Basis
Neutrally cross-linking alkoxy system
Tear strength
~ 3.04 N/mm (ISO 34-1)

Variants (4)

Download the catalog for more detailed information.
Artikelnummer Farbe Größe Verpackungseinheit Großverpackungseinheit
1400306 gray cartridge 310ml
1400301 transparent cartridge 310ml
1400401 transparent foil bag 400ml
1400302 white cartridge 310ml

Applications

Main applications

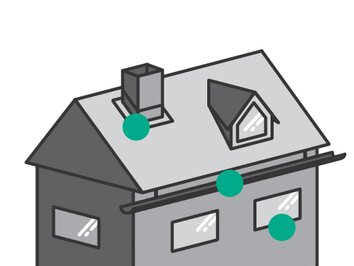

Illustration Haus mit Schornstein, Dachfenster und Regenrinne
Seals on roofs and structural facades
Tested and weather-proof professional-grade materials guarantee long-lasting joints under heavy stress and strain.

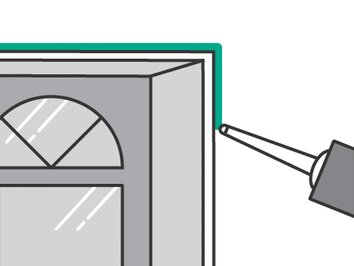

Sealing windows and doors on the outside
Long-lasting perimeter joints in outdoor areas require resilient and elastic sealants.
